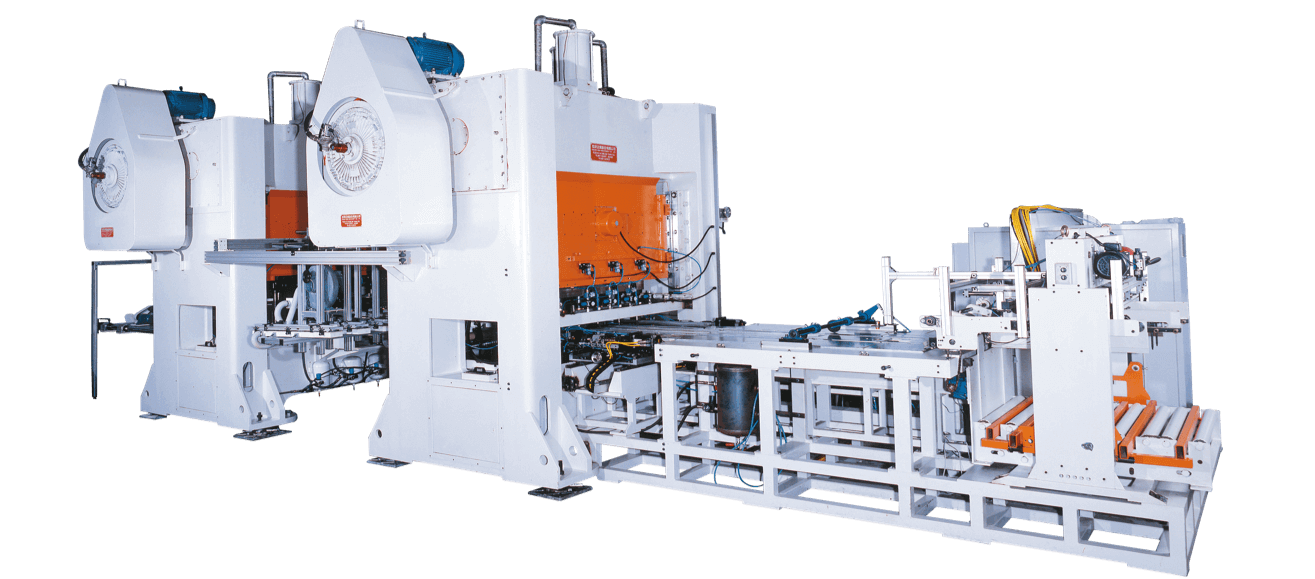

SJA-6021 Multi-die CNC Sheet Feed Press / SJA-6121 Multi-die Transfer Press

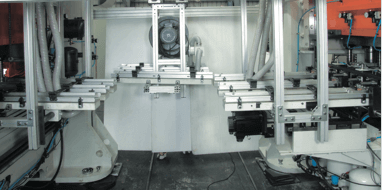

SHEET POSITIONING SYSTEM
Driven by cylinder, vacuum suckers and proximity sensor, sheet fixed accurately and efficiently.

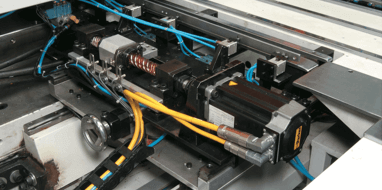

SHEET MOVEMENT MECHANISM
Driven by servomotor, sheet position assures high accuracy and stability.

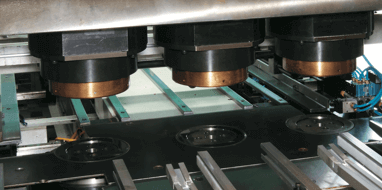

DRAW PRESS WITH MULTI-DIE

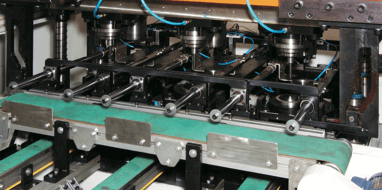

CONNECTION BETWEEN DRAW AND REDRAW
Air conveyor connected betwen draw and redraw press. Prevent products from being scratched.

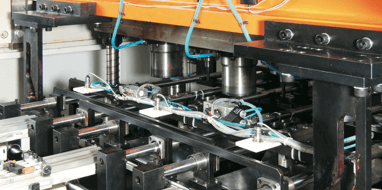

Driven by servomotor along with mechanism cam. Position fix accurately. Employ with proximity sensor to detect can position.

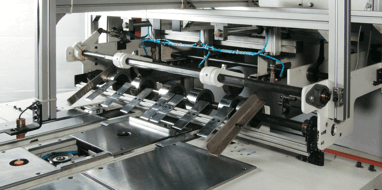

SEPARATED OUTPUT FOR FINISHED PRODUCT AND SCRPA
Model Unit SJ-6021/SJA-6121 Force ton 150 Storke Depth mm 180 Model Open mm 750 Capacity S.P.M 100~120 Max. sizes of sheet mm 1000X1000 Min. sizes of sheet mm 800X800
