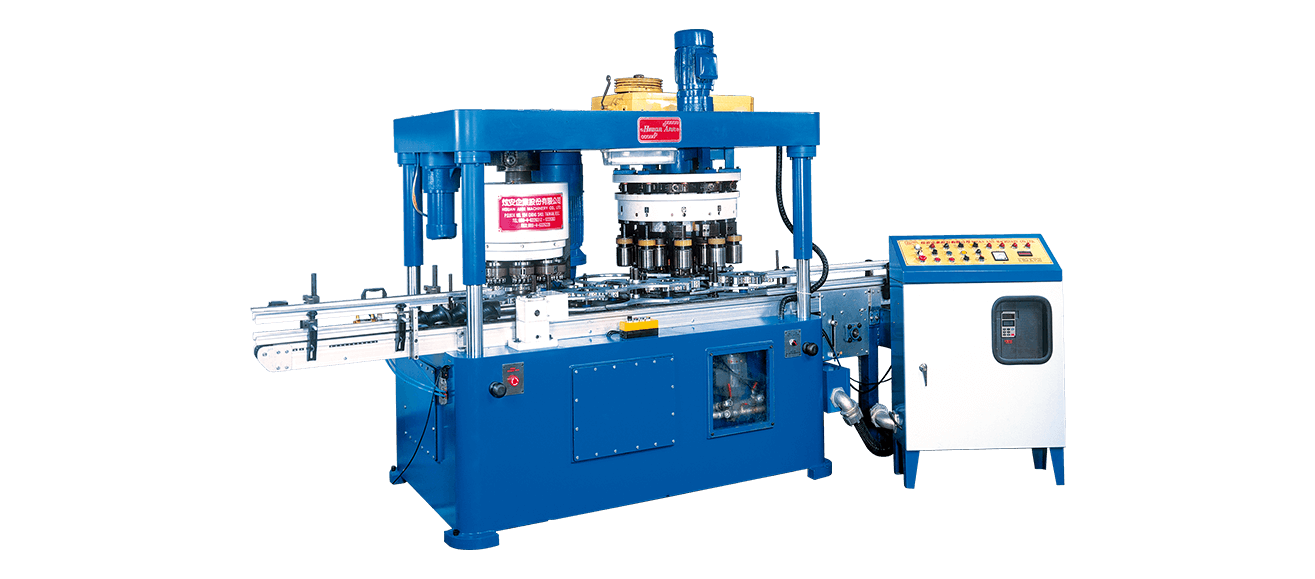

SJA-763K Series Automatic Spin Flanging Beading Machine

  • Specifications
    Model Unit SJA-763F SJA-763K SJA-763H
    Head 4H~4H 6H~6H 8H~8H
    Range of can diameter 401D~715D 401D~715D 401D~603D
    Range of can height mm 120~270 120`270 120`270
    Capacity per min cpm (H)Below 160/150; (H)Over 160/130 (H)Below 160/225; (H)Over 160/190 (H)Below 160/300; (H)Over 160/260
    Horsepower required HP 15HP 15HP 15HP
    Floor space mm 4000x1730x2200 4000x1730x2200 4000x1730x2200
    Feed height mm 1000 1000 1000
    Discharge height mm 1000 1000 1000
    Net weight kgs 12000 12500 13000
    All specification, design and characteristics shown on this catalogue are subject to change without prior notice.
