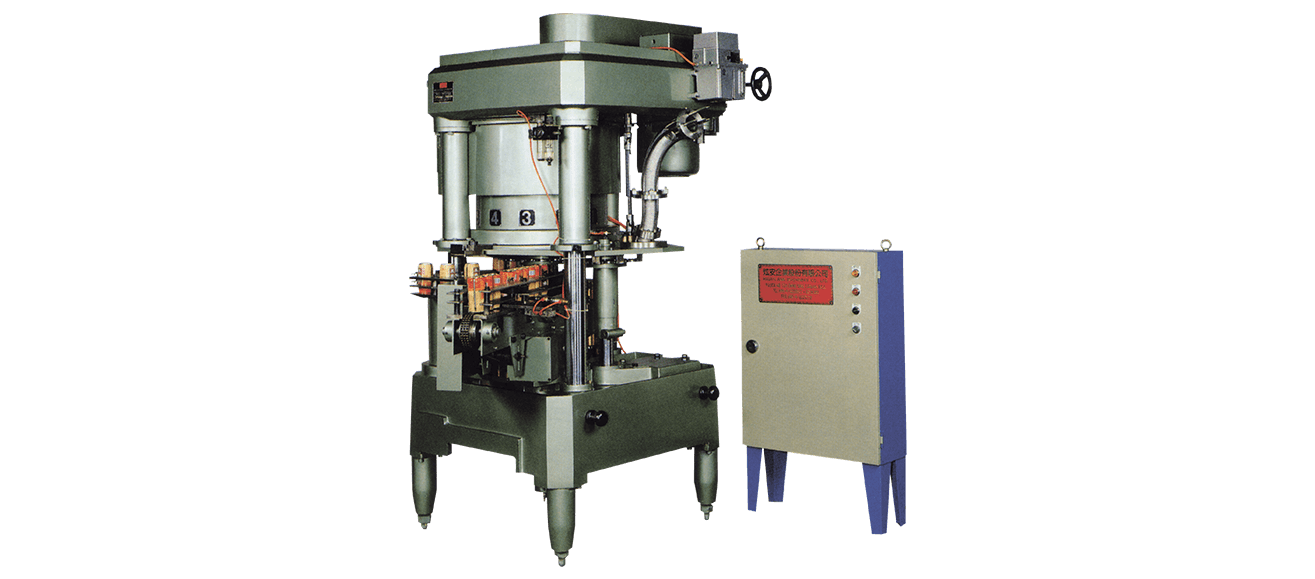

SJA-806 Automatic Double Seamer

  • Features
    1. 1.Double roll seaming operation fives high production speed.
    2. 2.The changing of can types is fast and convenient.
    3. 3.Employs a high performance Plc Controller for easy operation.
    4. 4.Full safety guard for motor overload, conveyor jam, can falling, lack of can at infeed end, can cap trouble, and lack of cans.
    5. 5.Can infeed stops automatically if a problem occurs.

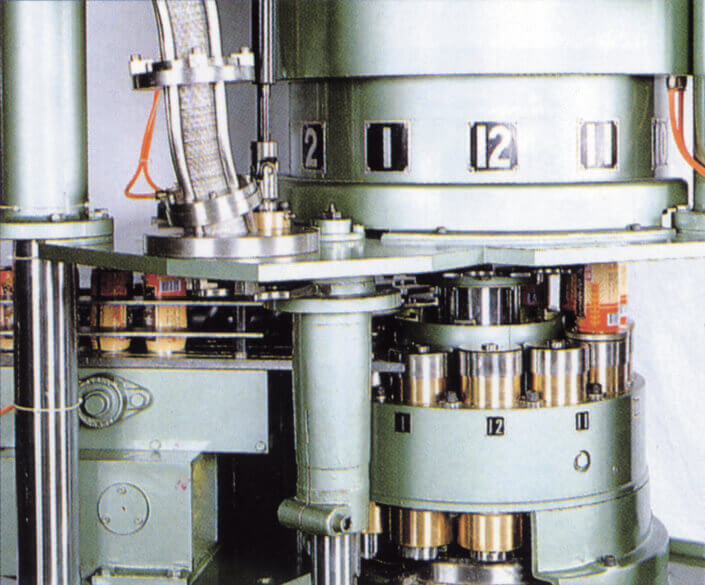

    The cap knife is adjustable to suit cap size variations.
    Automatic Double Seamer

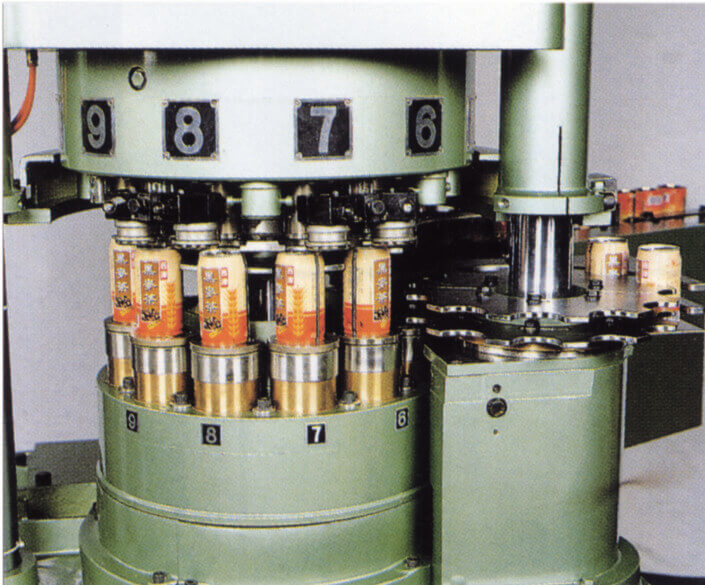

    Synchronized running between the pressure head and the can makes adjustment easy and fully eliminates can slippage problems. It also creates extremely tight can sealing.
    Automatic Double Seamer

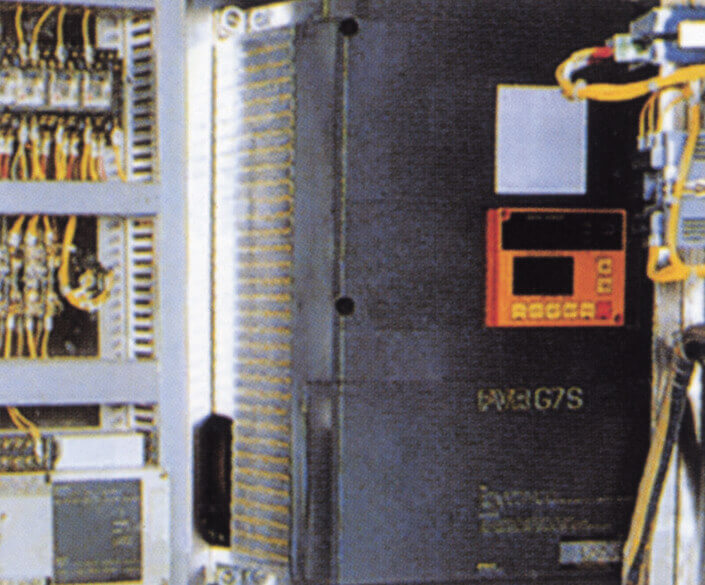

    The machine employs a high performance Plc Controller for maximum operation convenience. The production speed is controlled by a frequency invertor, permitting for variable speed on the production line.
    Automatic Double Seamer
  • Specifications
    Model Unit SJA-804A SJA-805A SJA-802A SJA-806A
    Head 4H 6H 8H 12H
    Range of can diameter 200-401D 200-401D 200-401D 200-300D
    Range of can height mm 80-210 80-210 80-210 80-180
    Capacity per min cpm 200-300 350-450 500-600 600-800
    Horsepower required HP 7 1/2 7 1/2 7 1/2 10
    Floor space(LxWxH) mm 2575x1194x1895 2575x1194x1895 1245x1195x2350 1750x1195x2350
    Feed height mm 1000 1000 1100 1100
    Discharge height mm 1000 1000 1100 1100
    Net weight(approx.) kgs 2100 2800 3000 3260
    All specification, design and characteristics shown on this catalogue are subject to change without prior notice.
